group: C1446
De VSH XPress C1446 is een rechte koppeling staalverzinkt met een pers en een wartel aansluiting. Wordt geleverd inclusief vlakke dichtring. Door VSH XPress te gebruiken in uw leidinginstallatie kunt u deze op een snelle, gemakkelijke en schone manier installeren. VSH XPress levert een compleet leidingsysteem geschikt voor elke denkbare toepassing.
verwarming
koeling
perslucht
solar installatie
sprinkler
vacuüm
gebouwinstallaties
scheepsbouw
brandbeveiliging
ATG
Bureau Veritas
CNBOP
DNV-GL
Lloyds Register
LPCB
QB (CSTBat)
RINA
RISE
SBSC
SPF
VdS
artikelnummer | afmeting | gewicht | afmetingen | verpakking | gtin |
---|---|---|---|---|---|
6340521 | 15xG3/4" | 0,07 kg | 37x35x35 mm | zak (10 st) | 08711985257540 |
6340532 | 18xG3/4" | 0,07 kg | 37x35x35 mm | zak (10 st) | 08711985257632 |
6342479 | 22xG3/4" | 0,1 kg | 52x35x30 mm | zak (10 st) | 08711985464726 |
6340554 | 22xG1" | 0,1 kg | 40x42x42 mm | zak (10 st) | 08711985257656 |
6340565 | 28xG1 1/4" | 0,15 kg | 41x53x53 mm | zak (10 st) | 08711985257663 |
6340576 | 35xG1 1/2" | 0,18 kg | 45x60x60 mm | zak (4 st) | 08711985257687 |
6340587 | 42xG1 3/4" | 0,23 kg | 52x60x60 mm | zak (4 st) | 08711985257700 |
6340598 | 54xG2 3/8" | 0,39 kg | 58x87x87 mm | zak (4 st) | 08711985257724 |

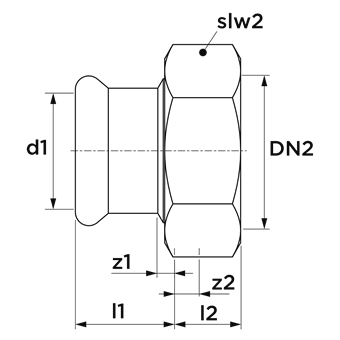

artikelnummer | afmeting | d1 | DN1 | l1 | z1 | DN2 | l2 | z2 | slw2 | d2 |
---|---|---|---|---|---|---|---|---|---|---|
6340521 | 15xG3/4" | 15,0 | DN12 | 29 | 9 | 3/4" (DN20) | 8 | 2 | 30 | |
6340532 | 18xG3/4" | 18,0 | DN15 | 29 | 9 | 3/4" (DN20) | 8 | 2 | 30 | |
6342479 | 22xG3/4" | 22,0 | DN20 | 44 | 23 | 3/4" (DN20) | 8 | 2 | 30 | |
6340554 | 22xG1" | 22,0 | DN20 | 30 | 9 | 1" (DN25) | 10 | 2 | 36 | |
6340565 | 28xG1 1/4" | 28,0 | DN25 | 31 | 8 | 1 1/4" (DN32) | 10 | 2 | 46 | |
6340576 | 35xG1 1/2" | 35,0 | DN32 | 34 | 8 | 1 1/2" (DN40) | 11 | 2 | 52 | |
6340587 | 42xG1 3/4" | 42,0 | DN40 | 41 | 11 | 1 3/4" (DN40) | 11 | 2 | 52 | 54,0 |
6340598 | 54xG2 3/8" | 54,0 | DN50 | 47 | 12 | 2 3/8" (DN50) | 11 | 3 | 75 |
kleur | zilver |
---|---|
materialen | staal (St 34.2 (1.0034)) |
afwerking | verzinkt |
producent | Aalberts integrated piping systems B.V. (VSH) |
vorm | recht |
verbinding | press (M), wartelmoer |
afdichting | EPDM |
productgroep | fittingen (meerdelig) |
---|---|
ETIM klasse | EC003024 Fitting met 2 aansluitingen |
intrastatnummer | 73079980 |
merk | VSH |
serie | XPress Staalverzinkt |
type | C1446 |
SCIP | 233056dc-cd46-44db-9410-a4845109c0f6 |
ATG3056_XPress_Carbon_F certificaten |
download | |
C1446 afbeelding |
png | download |
EPD VSH XPress Carbon Environmental Product Declaration |
download | |
SDS VSH XPress Carbon data sheet |
download | |
VSH XPress Carbon LPCB certificaten |
download | |
VSH XPress Carbon Lloyds Register certificaten |
download | |
VSH XPress Carbon SBSC certificaten |
download | |
VSH XPress Carbon SPF certificaten |
download | |
VSH XPress QB certificaten |
download | |
VSH _XPress_VdS certificaten |
download | |
VSH_XPress_Galvanized_RINA certificaten |
download | |
VSH_XPress_carbon_RISE certificaten |
download | |
ATG3056_XPress_Carbon certificaten |
download | |
Diagram diagram |
png | download |
VSH XPress Carbon&Stainless Bureau Veritas certificaten |
download | |
VSH XPress installation instructions installatie- & onderhoudsdocument |
download |
label | waarde |
---|---|
ETIM klasse | EC003024 Fitting met 2 aansluitingen |
Materiaal aansluiting 1 | Staal |
Kwaliteitsklasse aansluiting 1 | St 34.2 (1.0034) |
Oppervlaktebescherming aansluiting 1 | Elektrolytisch verzinkt |
Materiaal aansluiting 2 | Staal |
Kwaliteitsklasse aansluiting 2 | St 34.2 (1.0034) |
Oppervlaktebescherming aansluiting 2 | Elektrolytisch verzinkt |
Vorm | Recht |
Uitvoering | 2-delig |
Verlopend | Nee |
Excentrisch | Nee |
Systeemgebonden | Ja |
Wanddikte aansluiting 1 | 1,5mm |
Aansluiting 1 | Persmof |
Contourcode aansluiting 1 | M |
Aansluiting 2 | Wartelmoer |
Hoofdkleur fitting | Grijs |
Materiaal afdichting | Ethyleen-Propyleen-Dieen-Monomeer (EPDM) |
Met stootnok/-rand | Ja |
Hoge treksterkte | Ja |
Mediumtemperatuur (continu) | -35°C - 135°C |
Mediumtemperatuur (continu) (imperial) | -31°F - 275°F |
Max. werkdruk bij 20°C | 16bar |
Max. werkdruk bij 20°C (imperial) | 232,06psi |
Met thermische isolatie | Nee |
Met pakkingen | Ja |
Afgedopt | Nee |
Met aansluitingsindicator | Nee |
Met aftapper | Nee |
Met ontluchter | Nee |
FM keur | Nee |
ULC keur | Nee |
UL-keur | Nee |
DIN-CERTCO certificaat | Nee |
Met TUV goedkeuring | Nee |
DVGW-keur voor gas | Nee |
DVGW-keur voor water | Nee |
Gecertificeerd volgens NF 545 | Nee |
KIWA-keur | Nee |
Gastec QA | Nee |
KOMO-keur | Nee |
Gastec QA - KE 214 (H2) | Nee |
Type goedkeuring volgens BBR / EKS | Nee |
