T3T
De VSH Tectite Classic T3T is een rechte overgangskoppeling met een push en een conische buitendraad aansluiting. VSH Tectite biedt een kwalitatief hoogwaardige range aan insteekfittingen (push-fit). Door VSH Tectite te gebruiken bent u verzekerd van een professionele en betrouwbare installatie.
toepassingen
segmenten
certificaten
| artikelnummer | afmeting | gewicht | afmetingen | verpakking | gtin |
|---|---|---|---|---|---|
| 4751406 | 10xR1/2" | 0,06 kg | 40x20x20 mm | zak (10 st) | 05022050009814 |
| 4751384 | 10xR3/8" | 0,04 kg | 38x18x18 mm | zak (10 st) | 05022050009791 |
| 4751417 | 12xR1/2" | 0,05 kg | 40x30x30 mm | zak (10 st) | 05022050377135 |
| 4751553 | 14xG3/8" | 0,05 kg | 40x25x25 mm | zak (10 st) | 05022050011138 |
| 4751428 | 12xR3/8" | 0,04 kg | 40x23x23 mm | zak (10 st) | 05022050382450 |
| 4751441 | 15xR1/2" | 0,05 kg | 40x25x25 mm | zak (10 st) | 05022050009890 |
| 4751461 | 15xR3/8" | 0,04 kg | 40x25x25 mm | zak (10 st) | 05022050386588 |
| 4751472 | 18xR1/2" | 0,06 kg | 40x30x30 mm | zak (5 st) | 05022050009913 |
| 4751483 | 18xR3/4" | 0,08 kg | 43x33x33 mm | zak (5 st) | 05022050377319 |
| 4751494 | 22xR1" | 0,16 kg | 50x40x40 mm | zak (5 st) | 05022050386762 |
| 4751505 | 22xR1/2" | 0,07 kg | 43x33x33 mm | zak (5 st) | 05022050386700 |
| 4751516 | 22xR3/4" | 0,07 kg | 45x30x30 mm | zak (5 st) | 05022050382542 |
| 4751527 | 28xR1" | 0,14 kg | 50x40x40 mm | zak (2 st) | 05022050382573 |

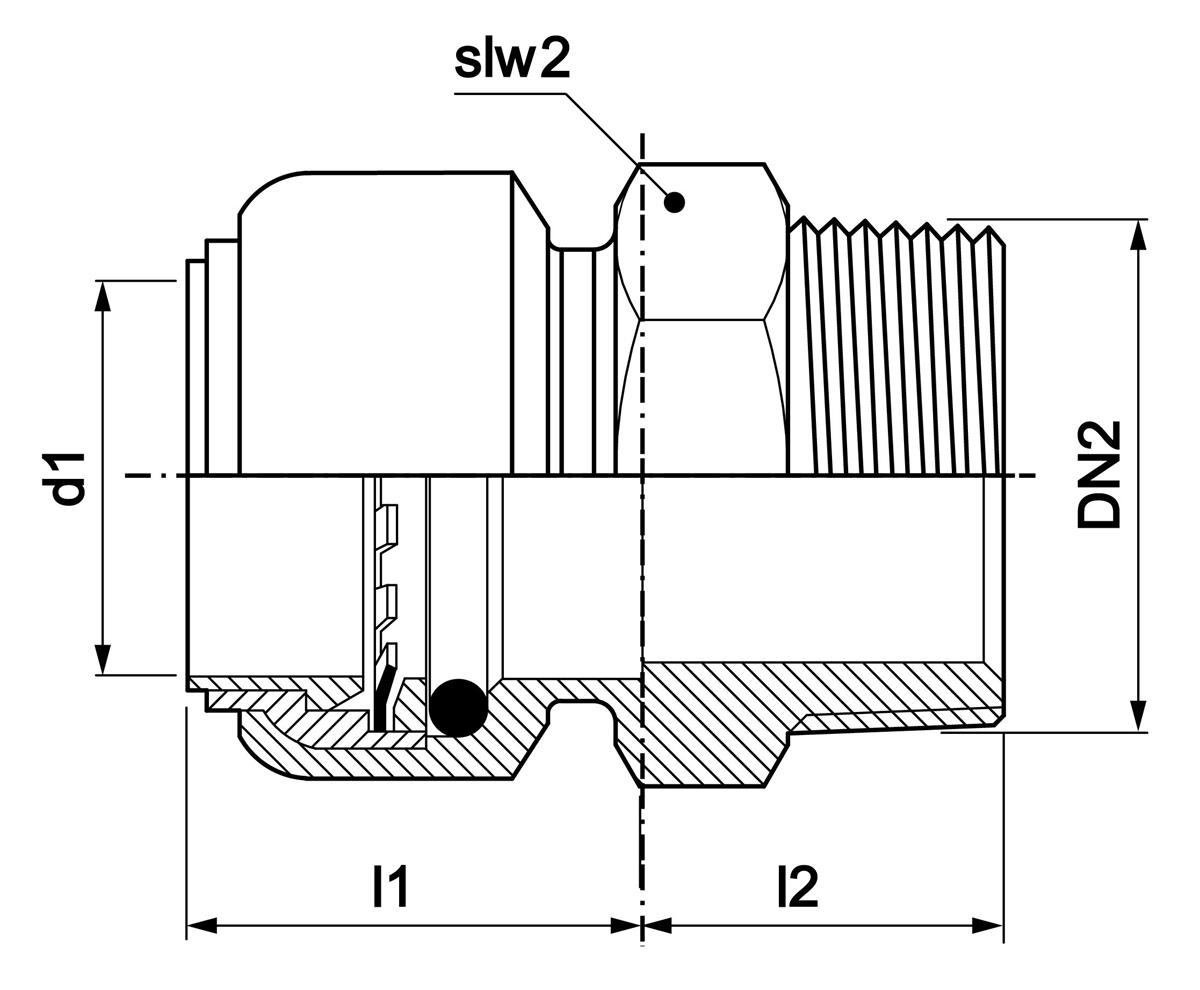

| artikelnummer | afmeting | d1 | DN1 | l1 | z1 | DN2 | l2 | slw2 |
|---|---|---|---|---|---|---|---|---|
| 4751406 | 10xR1/2" | 10,0 | DN10 | 24 | 0 | 1/2" (DN15) | 18 | 23 |
| 4751384 | 10xR3/8" | 10,0 | DN10 | 24 | 0 | 3/8" (DN10) | 15 | 20 |
| 4751417 | 12xR1/2" | 12,0 | DN10 | 24 | 0 | 1/2" (DN15) | 16 | 25 |
| 4751553 | 14xG3/8" | 14,0 | DN15 | 24 | 0 | 3/8" (DN10) | 13 | 22 |
| 4751428 | 12xR3/8" | 12,0 | DN10 | 24 | 0 | 3/8" (DN10) | 14 | 20 |
| 4751441 | 15xR1/2" | 15,0 | DN15 | 24 | 0 | 1/2" (DN15) | 16 | 22 |
| 4751461 | 15xR3/8" | 15,0 | DN15 | 24 | 0 | 3/8" (DN10) | 15 | 20 |
| 4751472 | 18xR1/2" | 18,0 | DN15 | 24 | 0 | 1/2" (DN15) | 19 | 24 |
| 4751483 | 18xR3/4" | 18,0 | DN15 | 24 | 0 | 3/4" (DN20) | 19 | 28 |
| 4751494 | 22xR1" | 22,0 | DN20 | 29 | 0 | 1" (DN25) | 20 | 34 |
| 4751505 | 22xR1/2" | 22,0 | DN20 | 29 | 0 | 1/2" (DN15) | 20 | 28 |
| 4751516 | 22xR3/4" | 22,0 | DN20 | 29 | 0 | 3/4" (DN20) | 20 | 28 |
| 4751527 | 28xR1" | 28,0 | DN25 | 32 | 0 | 1" (DN25) | 21 | 37 |
| kleur | messing |
|---|---|
| materialen | messing (CW511L (loodvrij), CW602N (DZR), CW617N) |
| afwerking | geen |
| producent | Pegler Yorkshire |
| vorm | recht, verloop |
| verbinding | insteek |
| afdichting | EPDM |
| productgroep | fittingen (demontabel) |
|---|---|
| ETIM klasse | EC003024 Fitting met 2 aansluitingen |
| intrastatnummer | 74122000 |
| merk | VSH |
| serie | Tectite Classic |
| UNSPS | 40172501 |
| SCIP | 054b35f0-c9aa-49ba-ba74-e8b35a8de72e |
20807_ETA_Tectite_Classic_10-28mm_PEX certificaten |
download | |
56700468_SP_SITAC_2018 certificaten |
download | |
ETA_classic_and_sprint_VA_1.22_19348 certificaten |
download | |
 T3 afbeelding |
png | download |
 T3P afbeelding |
jpg | download |
Tectite Push KIWA certificaten |
download | |
VSH Tectite ACS certificaten |
download | |
VSH Tectite Classic & Pro WRAS certificaten |
download | |
VSH Tectite Classic SDS data sheet |
download | |
VSH Tectite Classic and Pro DVGW certificaten |
download | |
VSH Tectite Classic and Pro ÜA certificaten |
download | |
VSH_Tectite_CSTB certificaten |
download | |
VSH_Tectite_Classic_Pro_OVGW certificaten |
download | |
 Diagram diagram |
jpg | download |
 Diagram diagram |
jpg | download |
ETA Denmark Tectite sprint_classic certificaten |
download | |
Tectite classic OVGW 210331_W1410 certificaten |
download | |
SINTEF certificaten |
download | |
STF certificaten |
download | |
WRAS certificaten |
download | |
VSH Tectite installation instructions NL installatie- & onderhoudsdocument |
download |
| artikelnummer | omschrijving | |
|---|---|---|
 |
4752277 | VSH Tectite demontagering 10 |
 |
4752090 | VSH Tectite demontagevork 10 |
 |
4752407 | VSH Tectite insteekdieptebepaler 10-28 |
|
4752297 | VSH Tectite demontagering 12 |
|
4752231 | VSH Tectite demontagevork 12 |
 |
4753221 | VSH Tectite Classic PEX-PB insert 12 |
|
4752308 | VSH Tectite demontagering 15 |
|
4752242 | VSH Tectite demontagevork 15 |
|
4752319 | VSH Tectite demontagering 18 |
|
4752253 | VSH Tectite demontagevork 18 |
|
4752321 | VSH Tectite demontagering 22 |
|
4752264 | VSH Tectite demontagevork 22 |
|
4752330 | VSH Tectite demontagering 28 |
|
4752275 | VSH Tectite demontagevork 28 |
|
4752299 | VSH Tectite demontagering 14 |
|
4752233 | VSH Tectite demontagevork 14 |
