SPG5275V

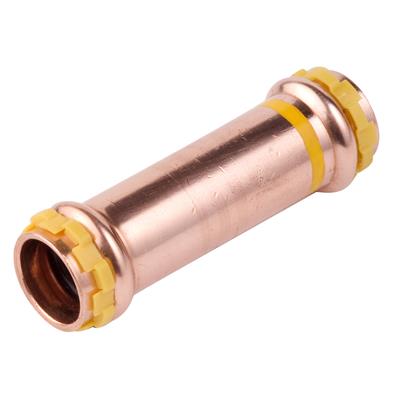

De VSH SudoPress SPG5275V is een overschuifkoppeling met 2 pers aansluitingen, geschikt voor Gas. De gele Visu-Control® ring en markering op de fitting zorgen voor een duidelijke identificatie van het systeem. VSH SudoPress levert een leidingsysteem dat in de meest uiteenlopende situaties kan worden gebruikt.
toepassingen
segmenten
certificaten
artikelnummer | afmeting | gewicht | afmetingen | verpakking | gtin |
---|---|---|---|---|---|
6674745 | 12 | 0,04 kg | 75x25x25 mm | zak (5 st) | 03430651365055 |
6674747 | 14 | 0,05 kg | 80x22x22 mm | zak (5 st) | 03430651365062 |
6674756 | 15 | 0,05 kg | 80x20x20 mm | zak (5 st) | 03430651365079 |
6674758 | 16 | 0,06 kg | 82x24x24 mm | zak (5 st) | 03430651365086 |
6674767 | 18 | 0,07 kg | 83x30x83 mm | zak (5 st) | 03430651365093 |
6674778 | 22 | 0,09 kg | 85x35x85 mm | zak (5 st) | 03430651365109 |
6674789 | 28 | 0,12 kg | 100x35x35 mm | zak (5 st) | 03430651365123 |
6674791 | 35 | 0,17 kg | 105x40x40 mm | zak (5 st) | 03430651365130 |
6674800 | 42 | 0,3 kg | 135x60x60 mm | zak (1 st) | 03430650365148 |
6674811 | 54 | 0,42 kg | 150x80x80 mm | zak (1 st) | 03430650365155 |
artikelnummer | afmeting | d1 | DN1 | l1 | es1 | d2 | DN2 | l2 | es2 |
---|---|---|---|---|---|---|---|---|---|
6674745 | 12 | 12,0 | DN10 | 36 | 18 | 12,0 | DN10 | 36 | 18 |
6674747 | 14 | 14,0 | DN12 | 40 | 22 | 14,0 | DN12 | 40 | 22 |
6674756 | 15 | 15,0 | DN12 | 41 | 22 | 15,0 | DN12 | 41 | 22 |
6674758 | 16 | 16,0 | DN12 | 41 | 22 | 16,0 | DN12 | 41 | 22 |
6674767 | 18 | 18,0 | DN15 | 40 | 22 | 18,0 | DN15 | 40 | 22 |
6674778 | 22 | 22,0 | DN20 | 41 | 23 | 22,0 | DN20 | 41 | 23 |
6674789 | 28 | 28,0 | DN25 | 47 | 24 | 28,0 | DN25 | 47 | 24 |
6674791 | 35 | 35,0 | DN32 | 52 | 25 | 35,0 | DN32 | 52 | 25 |
6674800 | 42 | 42,0 | DN40 | 60 | 36 | 42,0 | DN40 | 60 | 36 |
6674811 | 54 | 54,0 | DN50 | 68 | 41 | 54,0 | DN50 | 68 | 41 |
kleur | koper |
---|---|
materialen | koper (CW024A (UNS C12200)) |
afwerking | geen |
producent | Aalberts integrated piping systems B.V. (VSH) |
vorm | recht |
verbinding | press (V) |
afdichting | HNBR |
productgroep | fittingen |
---|---|
ETIM klasse | EC003024 Fitting met 2 aansluitingen |
intrastatnummer | 74122000 |
land van oorsprong | Frankrijk |
merk | VSH |
serie | SudoPress Koper Gas |
type | SPG5275V |
UNSPS | 40172607 |
SPG5275V afbeelding |
jpg | download |
VSH SudoPress Copper ATG-Sert 001 certificaten |
download | |
VSH SudoPress Copper ATG-Sert 002 certificaten |
download | |
VSH SudoPress Copper GASTEC certificaten |
download | |
VSH SudoPress Copper Gas ARGB-KVBG certificaten |
download | |
VSH SudoPress Copper Gas Gastec H2 certificaten |
download | |
VSH SudoPress TSU certificaten |
download | |
VSH XPress Copper DVGW Gas certificaten |
download | |
Diagram diagram |
png | download |
VSH SudoPress instructions installatie- & onderhoudsdocument |
download |
label | waarde |
---|---|
ETIM klasse | EC003024 Fitting met 2 aansluitingen |
Materiaal aansluiting 1 | Koper |
Kwaliteitsklasse aansluiting 1 | Cu-DHP (CW024A) |
Oppervlaktebescherming aansluiting 1 | Geen (onbehandeld) |
Oppervlaktebehandeling aansluiting 1 | Geen (onbehandeld) |
Materiaal aansluiting 2 | Koper |
Oppervlaktebescherming aansluiting 2 | Geen (onbehandeld) |
Oppervlaktebehandeling aansluiting 2 | Geen (onbehandeld) |
Vorm | Recht |
Uitvoering | 1-delig |
Verlopend | Nee |
Excentrisch | Nee |
Systeemgebonden | Ja |
Aansluiting 1 | Persmof |
Contourcode aansluiting 1 | V |
Aansluiting 2 | Persmof |
Contourcode aansluiting 2 | V |
Materiaal afdichting | Gehydroneerd nitril rubber (HNBR) |
Met stootnok/-rand | Nee |
Hoge treksterkte | Ja |
Mediumtemperatuur (continu) | -20°C - 70°C |
Mediumtemperatuur (continu) (imperial) | -4°F - 158°F |
Met pakkingen | Nee |
Afgedopt | Nee |
Met aansluitingsindicator | Ja |
Met aftapper | Nee |
Met ontluchter | Nee |
FM keur | Nee |
LPCB keur | Nee |
ULC keur | Nee |
UL-keur | Nee |
VdS keur | Nee |
DVGW-keur voor water | Nee |
Gecertificeerd volgens NF 545 | Nee |
KIWA-keur | Nee |
KOMO-keur | Nee |
artikelnummer | omschrijving | |
---|---|---|
6674899 | VSH SudoPress Koper Gas O-ring HNBR F 12 | |
6211898 | Ontbramer voor staalverzinkt en RVS buis 12-54 | |
6580002 | Novopress bek PB1 V12 | |
6580068 | Novopress bek PB2 V12 | |
6674901 | VSH SudoPress Koper Gas O-ring HNBR F 15 | |
6580013 | Novopress bek PB1 V15 | |
6580079 | Novopress bek PB2 V15 | |
6674910 | VSH SudoPress Koper Gas O-ring HNBR F 18 | |
6580024 | Novopress bek PB1 V18 | |
6580081 | Novopress bek PB2 V18 | |
6674921 | VSH SudoPress Koper Gas O-ring HNBR F 22 | |
6580035 | Novopress bek PB1 V22 | |
6580090 | Novopress bek PB2 V22 | |
6674932 | VSH SudoPress Koper Gas O-ring HNBR F 28 | |
6580046 | Novopress bek PB1 V28 | |
6580101 | Novopress bek PB2 V28 | |
6674943 | VSH SudoPress Koper Gas O-ring HNBR F 35 | |
6558552 | VSH SudoPress O-ring FPM LBP 35 | |
6580112 | Novopress bek PB2 V35 | |
6580057 | Novopress bek PB1 V35 | |
6674954 | VSH SudoPress Koper Gas O-ring HNBR F 42 | |
6580123 | Novopress bek PB2 V42 | |
6580156 | Novopress ketting snap on V42 | |
6674965 | VSH SudoPress Koper Gas O-ring HNBR F 54 | |
6580134 | Novopress bek PB2 V54 | |
6580167 | Novopress ketting snap on V54 | |
6674902 | VSH SudoPress Koper Gas O-ring HNBR F 14 | |
6580266 | Novopress bek PB1 V14 | |
6580288 | Novopress bek PB2 V14 | |
6674903 | VSH SudoPress Koper Gas O-ring HNBR F 16 | |
6580277 | Novopress bek PB1 V16 | |
6580299 | Novopress bek PB2 V16 |
