SPG5270V

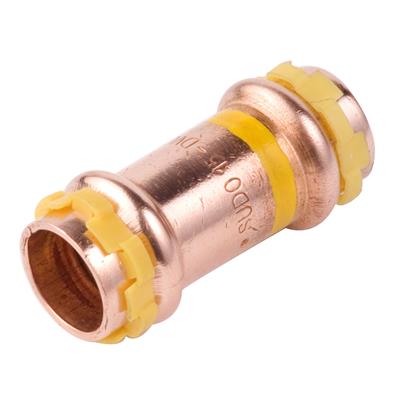

De VSH SudoPress SPG5270V is een rechte koppeling met 2 pers aansluitingen, geschikt voor Gas. De gele Visu-Control® ring en markering op de fitting zorgen voor een duidelijke identificatie van het systeem. VSH SudoPress levert een leidingsysteem dat in de meest uiteenlopende situaties kan worden gebruikt.
toepassingen
segmenten
certificaten
artikelnummer | afmeting | gewicht | afmetingen | verpakking | gtin |
---|---|---|---|---|---|
6674668 | 12 | 0,03 kg | 40x20x20 mm | zak (5 st) | 03430651364737 |
6674670 | 14 | 0,03 kg | 48x22x22 mm | zak (5 st) | 03430651364744 |
6674679 | 15 | 0,03 kg | 50x20x20 mm | zak (10 st) | 03430651364768 |
6674692 | 16 | 0,04 kg | 49x24x24 mm | zak (5 st) | 03430651364775 |
6674681 | 18 | 0,04 kg | 50x25x25 mm | zak (10 st) | 03430651364782 |
6674690 | 22 | 0,06 kg | 55x35x35 mm | zak (10 st) | 03430651364799 |
6674701 | 28 | 0,08 kg | 55x35x35 mm | zak (10 st) | 03430651364812 |
6674712 | 35 | 0,1 kg | 55x55x40 mm | zak (5 st) | 03430651364829 |
6674723 | 42 | 0,21 kg | 90x70x70 mm | zak (1 st) | 03430651364836 |
6674734 | 54 | 0,3 kg | 110x90x90 mm | zak (1 st) | 03430650364844 |
artikelnummer | afmeting | d1 | DN1 | l1 | z1 | d2 | DN2 | l2 | z2 |
---|---|---|---|---|---|---|---|---|---|
6674668 | 12 | 12,0 | DN10 | 20 | 2 | 12,0 | DN10 | 20 | 2 |
6674670 | 14 | 14,0 | DN12 | 24 | 2 | 14,0 | DN12 | 24 | 2 |
6674679 | 15 | 15,0 | DN12 | 25 | 3 | 15,0 | DN12 | 25 | 3 |
6674692 | 16 | 16,0 | DN12 | 25 | 3 | 16,0 | DN12 | 25 | 3 |
6674681 | 18 | 18,0 | DN15 | 25 | 3 | 18,0 | DN15 | 25 | 3 |
6674690 | 22 | 22,0 | DN20 | 26 | 3 | 22,0 | DN20 | 26 | 3 |
6674701 | 28 | 28,0 | DN25 | 27 | 3 | 28,0 | DN25 | 27 | 3 |
6674712 | 35 | 35,0 | DN32 | 28 | 3 | 35,0 | DN32 | 28 | 3 |
6674723 | 42 | 42,0 | DN40 | 42 | 6 | 42,0 | DN40 | 42 | 6 |
6674734 | 54 | 54,0 | DN50 | 46 | 5 | 54,0 | DN50 | 46 | 5 |
kleur | koper |
---|---|
materialen | koper (CW024A (UNS C12200)) |
afwerking | geen |
producent | Aalberts integrated piping systems B.V. (VSH) |
vorm | recht |
verbinding | press (V) |
afdichting | HNBR |
productgroep | fittingen |
---|---|
ETIM klasse | EC003024 Fitting met 2 aansluitingen |
intrastatnummer | 74122000 |
merk | VSH |
serie | SudoPress Koper Gas |
type | SPG5270V |
UNSPS | 40172607 |
SPG5270V afbeelding |
jpg | download |
