group: S1214

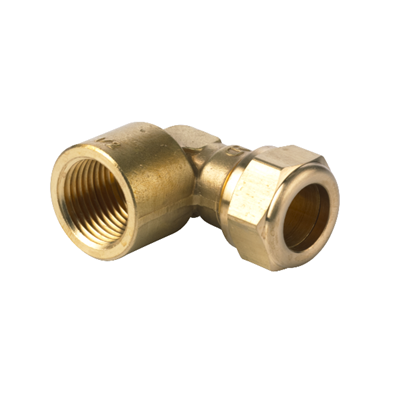

De VSH Super S1214 is een 90° kniekoppeling met een knel en een binnendraad aansluiting. VSH Super biedt een groot assortiment fittingen voor elke toepassing, ontworpen voor optimaal installatie gemak. Eenvoudige installatie en hoge kwaliteit zijn de topprioriteiten van het VSH Super-assortiment.
drinkwater
aardgas
verwarming
perslucht
solar installatie
waterstof (H2)
gebouwinstallaties
industrie
DVGW Gas
DVGW Wasser
GASTEC
Gastec-H2-ready
KIWA
RISE
SINTEF
VA (ETA)
| artikelnummer | afmeting | gewicht | afmetingen | verpakking | gtin |
|---|---|---|---|---|---|
| 0865293 | 10xRp3/8" | 0,05 kg | 41x22x32 mm | zak (25 st) | 08711985017472 |
| 0865315 | 15xRp3/8" | 0,07 kg | 46x28x36 mm | zak (25 st) | 08711985017519 |
| 0865403 | 15xG1/2" | 0,08 kg | 46x28x37 mm | zak (5 st) | 08711985116458 |
| 0872883 | 15xG1/2" Ni | 0,08 kg | 46x28x37 mm | zak (25 st) | 08711985022544 |
| 0865471 | 15xRp1/2" | 0,1 kg | 50x28x42 mm | zak (5 st) | 08711985116465 |
| 0881254 | 15xRp1/2" DZR | 0,1 kg | 46x26x37 mm | zak (10 st) | 08711985059236 |
| 0896731 | 15xRp1/2" DZR Cr | 0,09 kg | 46x26x37 mm | zak (10 st) | 08711985059557 |
| 0865513 | 15xRp3/4" | 0,12 kg | 56x32x45 mm | zak (5 st) | 08711985116472 |
| 0872641 | 15xRp3/4" Ni | 0,11 kg | 56x32x45 mm | zak (25 st) | 08711985022520 |
| 0865414 | 18xRp1/2" | 0,12 kg | 51x31x44 mm | zak (25 st) | 08711985017618 |
| 0881232 | 10xRp1/2" DZR | 0,08 kg | 46x26x38 mm | zak (10 st) | 08711985059144 |
| 0896709 | 10xRp1/2" DZR Cr | 0,08 kg | 46x26x38 mm | zak (10 st) | 08711985059465 |
| 0865304 | 12xRp3/8" | 0,06 kg | 43x22x33 mm | zak (25 st) | 08711985017496 |
| 0881210 | 12xRp3/8" DZR | 0,06 kg | 43x22x33 mm | zak (10 st) | 08711985059175 |
| 0896711 | 12xRp3/8" DZR Cr | 0,06 kg | 43x22x33 mm | zak (10 st) | 08711985059489 |
| 0865491 | 12xRp1/2" | 0,08 kg | 48x26x41 mm | zak (25 st) | 08711985017557 |
| 0881243 | 12xRp1/2" DZR | 0,08 kg | 48x26x39 mm | zak (10 st) | 08711985059199 |
| 0896720 | 12xRp1/2" DZR Cr | 0,08 kg | 48x26x39 mm | zak (10 st) | 08711985059502 |
| 0881265 | 18xRp1/2" DZR | 0,11 kg | 51x31x45 mm | zak (10 st) | 08711985059274 |
| 0865524 | 18xRp3/4" | 0,14 kg | 57x32x48 mm | zak (25 st) | 08711985017670 |
| 0862829 | 22xRp1/2" | 0,13 kg | 51x37x46 mm | zak (10 st) | 08711985017632 |
| 0881342 | 22xRp1/2" DZR | 0,13 kg | 51x37x46 mm | zak (10 st) | 08711985059311 |
| 0872685 | 22xRp1/2" DZR Ni | 0,13 kg | 51x37x46 mm | zak (10 st) | 08711985022568 |
| 0865502 | 22xG3/4" | 0,14 kg | 60x37x45 mm | zak (10 st) | 08711985017694 |
| 0872872 | 22xG3/4" Ni | 0,14 kg | 60x37x45 mm | zak (10 st) | 08711985022582 |
| 0865581 | 22xRp3/4" | 0,15 kg | 57x37x52 mm | zak (5 st) | 08711985116489 |
| 0881276 | 22xRp3/4" DZR | 0,16 kg | 57x37x52 mm | zak (10 st) | 08711985059335 |
| 0865590 | 22xG1" | 0,16 kg | 61x37x46 mm | zak (10 st) | 08711985017731 |
| 0865689 | 22xRp1" | 0,18 kg | 63x38x57 mm | zak (10 st) | 08711985017755 |
| 0865601 | 28xRp1" | 0,22 kg | 65x45x57 mm | zak (5 st) | 08711985017779 |
| 0881287 | 28xRp1" DZR | 0,22 kg | 65x45x56 mm | zak (5 st) | 08711985059359 |
| 0872707 | 28xRp1" DZR Ni | 0,21 kg | 65x45x57 mm | zak (5 st) | 08711985022629 |
| 0863962 | 35xRp1 1/4" DZR | 0,38 kg | 74x53x73 mm | zak (5 st) | 08711985017793 |
| 0864215 | 54xRp2" DZR | 0,89 kg | 102x81x101 mm | zak (1 st) | 08711985017847 |

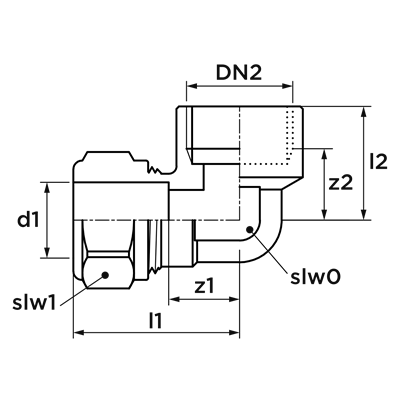

| artikelnummer | afmeting | d1 | DN1 | l1 | z1 | slw1 | d2 | DN2 | l2 | z2 | slw0 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 0865293 | 10xRp3/8" | 10,0 | DN8 | 30 | 13 | 17 | 17,2 | 3/8" (DN10) | 22 | 10 | 12 |
| 0865315 | 15xRp3/8" | 15,0 | DN12 | 35 | 13 | 24 | 17,2 | 3/8" (DN10) | 22 | 10 | 17 |
| 0865403 | 15xG1/2" | 15,0 | DN12 | 33 | 11 | 24 | 21,3 | 1/2" (DN15) | 23 | 14 | 17 |
| 0872883 | 15xG1/2" Ni | 15,0 | DN12 | 33 | 11 | 24 | 21,3 | 1/2" (DN15) | 23 | 14 | 17 |
| 0865471 | 15xRp1/2" | 15,0 | DN12 | 37 | 15 | 24 | 21,3 | 1/2" (DN15) | 28 | 13 | 17 |
| 0881254 | 15xRp1/2" DZR | 15,0 | DN12 | 33 | 15 | 24 | 21,3 | 1/2" (DN15) | 23 | 14 | 17 |
| 0896731 | 15xRp1/2" DZR Cr | 15,0 | DN12 | 33 | 15 | 24 | 21,3 | 1/2" (DN15) | 23 | 14 | 17 |
| 0865513 | 15xRp3/4" | 15,0 | DN12 | 40 | 18 | 24 | 26,9 | 3/4" (DN20) | 31 | 14 | 17 |
| 0872641 | 15xRp3/4" Ni | 15,0 | DN12 | 40 | 18 | 24 | 26,9 | 3/4" (DN20) | 31 | 14 | 17 |
| 0865414 | 18xRp1/2" | 18,0 | DN15 | 38 | 15 | 27 | 21,3 | 1/2" (DN15) | 29 | 14 | 22 |
| 0881232 | 10xRp1/2" DZR | 10,0 | DN8 | 33 | 17 | 17 | 21,3 | 1/2" (DN15) | 28 | 13 | 12 |
| 0896709 | 10xRp1/2" DZR Cr | 10,0 | DN8 | 33 | 17 | 17 | 21,3 | 1/2" (DN15) | 28 | 13 | 12 |
| 0865304 | 12xRp3/8" | 12,0 | DN10 | 32 | 13 | 19 | 17,2 | 3/8" (DN10) | 22 | 10 | 14 |
| 0881210 | 12xRp3/8" DZR | 12,0 | DN10 | 32 | 13 | 19 | 17,2 | 3/8" (DN10) | 22 | 10 | 14 |
| 0896711 | 12xRp3/8" DZR Cr | 12,0 | DN10 | 32 | 13 | 19 | 17,2 | 3/8" (DN10) | 22 | 10 | 14 |
| 0865491 | 12xRp1/2" | 12,0 | DN10 | 35 | 16 | 19 | 21,3 | 1/2" (DN15) | 28 | 13 | 14 |
| 0881243 | 12xRp1/2" DZR | 12,0 | DN10 | 35 | 16 | 19 | 21,3 | 1/2" (DN15) | 28 | 13 | 14 |
| 0896720 | 12xRp1/2" DZR Cr | 12,0 | DN10 | 35 | 16 | 19 | 21,3 | 1/2" (DN15) | 28 | 13 | 14 |
| 0881265 | 18xRp1/2" DZR | 18,0 | DN15 | 38 | 15 | 27 | 21,3 | 1/2" (DN15) | 29 | 14 | 22 |
| 0865524 | 18xRp3/4" | 18,0 | DN15 | 41 | 18 | 27 | 26,9 | 3/4" (DN20) | 32 | 15 | 22 |
| 0862829 | 22xRp1/2" | 22,0 | DN20 | 38 | 15 | 32 | 21,3 | 1/2" (DN15) | 27 | 12 | 24 |
| 0881342 | 22xRp1/2" DZR | 22,0 | DN20 | 38 | 15 | 32 | 21,3 | 1/2" (DN15) | 27 | 12 | 24 |
| 0872685 | 22xRp1/2" DZR Ni | 22,0 | DN20 | 38 | 15 | 32 | 21,3 | 1/2" (DN15) | 27 | 12 | 24 |
| 0865502 | 22xG3/4" | 22,0 | DN20 | 44 | 16 | 32 | 26,9 | 3/4" (DN20) | 26 | 17 | 24 |
| 0872872 | 22xG3/4" Ni | 22,0 | DN20 | 44 | 16 | 32 | 26,9 | 3/4" (DN20) | 26 | 17 | 24 |
| 0865581 | 22xRp3/4" | 22,0 | DN20 | 41 | 18 | 32 | 26,9 | 3/4" (DN20) | 33 | 16 | 24 |
| 0881276 | 22xRp3/4" DZR | 22,0 | DN20 | 41 | 18 | 32 | 26,9 | 3/4" (DN20) | 33 | 16 | 24 |
| 0865590 | 22xG1" | 22,0 | DN20 | 42 | 18 | 32 | 33,7 | 1" (DN25) | 27 | 15 | 24 |
| 0865689 | 22xRp1" | 22,0 | DN20 | 44 | 21 | 32 | 33,7 | 1" (DN25) | 38 | 19 | 24 |
| 0865601 | 28xRp1" | 28,0 | DN25 | 46 | 21 | 39 | 33,7 | 1" (DN25) | 34 | 15 | 30 |
| 0881287 | 28xRp1" DZR | 28,0 | DN25 | 46 | 21 | 39 | 33,7 | 1" (DN25) | 34 | 15 | 30 |
| 0872707 | 28xRp1" DZR Ni | 28,0 | DN25 | 46 | 21 | 39 | 33,7 | 1" (DN25) | 34 | 15 | 30 |
| 0863962 | 35xRp1 1/4" DZR | 35,0 | DN32 | 50 | 22 | 46 | 42,4 | 1 1/4" (DN32) | 46 | 25 | 36 |
| 0864215 | 54xRp2" DZR | 54,0 | DN50 | 68 | 28 | 70 | 60,3 | 2" (DN50) | 60 | 35 | 60 |
| kleur | messing, zilver, chroom |
|---|---|
| materialen | messing (CW602N (DZR), CW617N) |
| afwerking | verchroomd, vernikkeld, geen |
| producent | Aalberts integrated piping systems B.V. (VSH) |
| vorm | knie, verloop (90º) |
| verbinding | knel |
| afdichting | Messing |
| productgroep | fittingen |
|---|---|
| ETIM klasse | EC003024 Fitting met 2 aansluitingen |
| intrastatnummer | 74122000 |
| merk | VSH |
| serie | Super |
| type | S1214 |
| SCIP | 1e5d1bf2-d72d-4b8f-ba91-73f637c5ac6d |
EPD VSH Super Brass Environmental Product Declaration |
download | |
MSDS_VSH_Super data sheet |
download | |
 S1214_Chroom afbeelding |
png | download |
VSH Super DVGW Gas certificaten |
download | |
VSH Super DVGW Water certificaten |
download | |
VSH Super Gas GASTEC QA 10-54mm certificaten |
download | |
VSH Super Gas instructions installatie- & onderhoudsdocument |
download | |
VSH Super Gastec H2 certificaten |
download | |
VSH Super KIWA Water 10-54 mm certificaten |
download | |
VSH Super Knel water 15-42 mm ETA certificaten |
download | |
VSH Super PEX ETA 10-22 mm water certificaten |
download | |
VSH Super RISE certificaten |
download | |
VSH_Super_Knel_instructie_NL installatie- & onderhoudsdocument |
download | |
VSH_Super_water_SINTEF certificaten |
download | |
 Diagram diagram |
png | download |
 S1214 afbeelding |
png | download |
| label | waarde |
|---|---|
| ETIM klasse | EC003024 Fitting met 2 aansluitingen |
| Materiaal aansluiting 1 | Messing |
| Materiaal aansluiting 2 | Messing |
| Vorm | Bocht |
| Uitvoering | 1-delig |
| Bochthoek | 90° |
| Excentrisch | Nee |
| Systeemgebonden | Ja |
| Aansluiting 1 | Knelring |
| Materiaal afdichting | Messing |
| Met stootnok/-rand | Ja |
| Hoge treksterkte | Ja |
| Mediumtemperatuur (continu) | -35°C - 200°C |
| Mediumtemperatuur (continu) (imperial) | -31°F - 392°F |
| Max. werkdruk bij 20°C | 10bar |
| Max. werkdruk bij 20°C (imperial) | 145,04psi |
| Met pakkingen | Nee |
| Afgedopt | Nee |
| Met aansluitingsindicator | Nee |
| Met aftapper | Nee |
| Met ontluchter | Nee |
| FM keur | Nee |
| LPCB keur | Nee |
| ULC keur | Nee |
| UL-keur | Nee |
| VdS keur | Nee |
| Gecertificeerd volgens NF 545 | Nee |
| KOMO-keur | Nee |
