R2728
De VSH XPress R2728 is een RVS 90º kniekoppeling met een pers en buitendraad aansluiting. Door VSH XPress te gebruiken in uw leidinginstallatie kunt u deze op een snelle, gemakkelijke en schone manier installeren. VSH XPress levert een compleet leidingsysteem geschikt voor elke denkbare toepassing.
toepassingen
segmenten
certificaten
artikelnummer | afmeting | gewicht | afmetingen | verpakking | gtin |
---|---|---|---|---|---|
6190877 | 15xR1/2" | 0,07 kg | 42x24x54 mm | zak (10 st) | 08711985153057 |
6190888 | 18xR1/2" | 0,09 kg | 45x28x56 mm | zak (10 st) | 08711985153071 |
6190899 | 22xR3/4" | 0,14 kg | 54x35x64 mm | zak (10 st) | 08711985153095 |
6190901 | 28xR1" | 0,19 kg | 65x39x70 mm | zak (10 st) | 08711985153118 |
6190910 | 35xR1 1/4" | 0,31 kg | 74x50x82 mm | zak (5 st) | 08711985163780 |
6190921 | 42xR1 1/2" | 0,43 kg | 85x55x94 mm | zak (2 st) | 08711985153156 |
6190932 | 54xR2" | 0,66 kg | 101x70x113 mm | zak (2 st) | 08711985153170 |

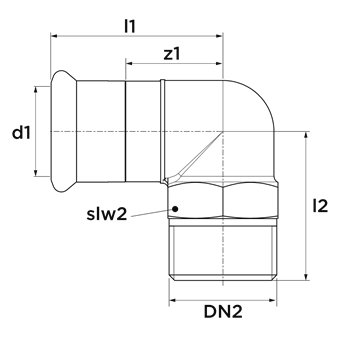

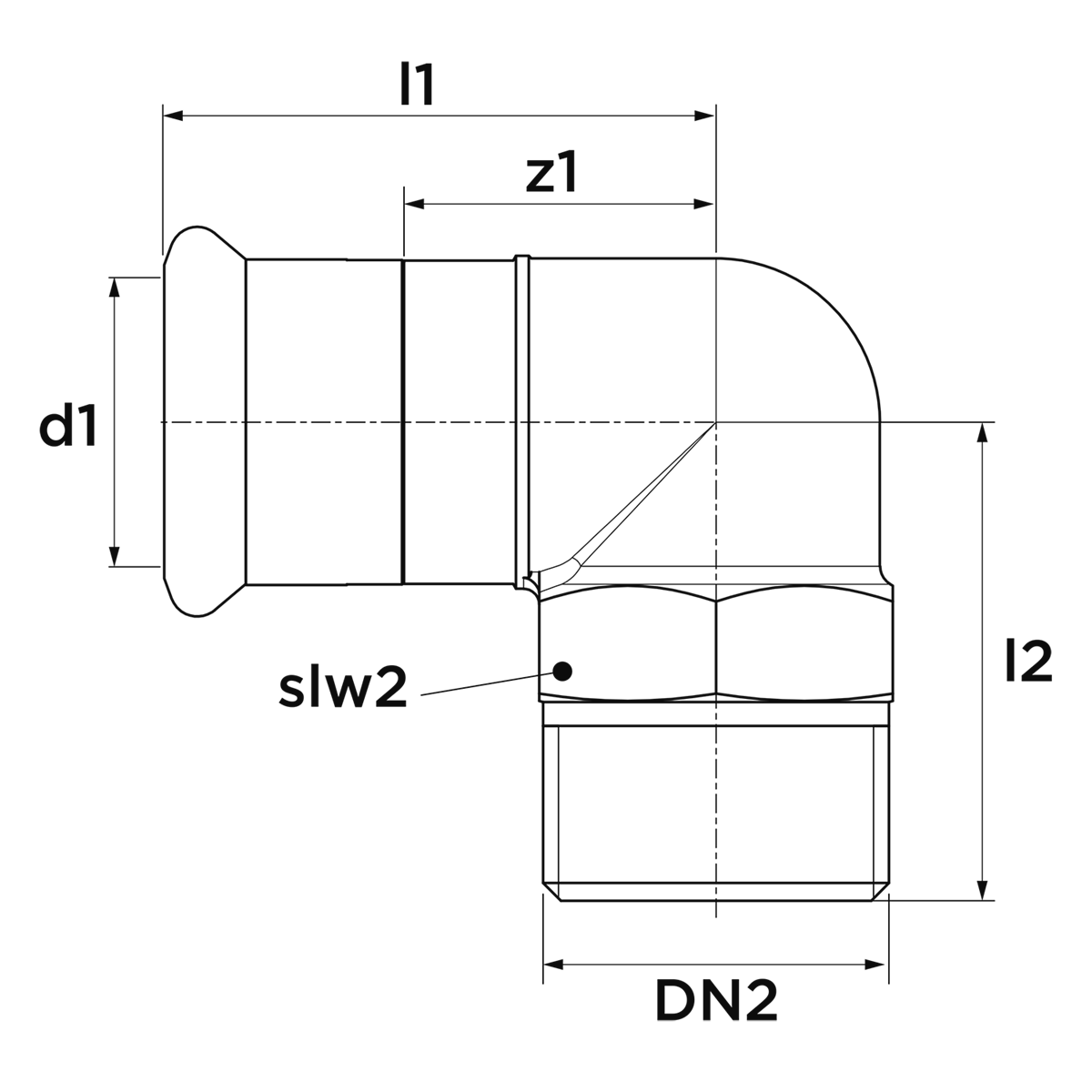

artikelnummer | afmeting | d1 | DN1 | l1 | z1 | d2 | DN2 | l2 | slw2 |
---|---|---|---|---|---|---|---|---|---|
6190877 | 15xR1/2" | 15,0 | DN12 | 43 | 23 | 21,3 | 1/2" (DN15) | 31 | 22 |
6190888 | 18xR1/2" | 18,0 | DN15 | 44 | 24 | 21,3 | 1/2" (DN15) | 32 | 24 |
6190899 | 22xR3/4" | 22,0 | DN20 | 49 | 28 | 26,9 | 3/4" (DN20) | 39 | 30 |
6190901 | 28xR1" | 28,0 | DN25 | 53 | 30 | 33,7 | 1" (DN25) | 46 | 34 |
6190910 | 35xR1 1/4" | 35,0 | DN32 | 60 | 34 | 42,4 | 1 1/4" (DN32) | 52 | 43 |
6190921 | 42xR1 1/2" | 42,0 | DN40 | 69 | 39 | 48,3 | 1 1/2" (DN40) | 58 | 49 |
6190932 | 54xR2" | 54,0 | DN50 | 82 | 47 | 60,3 | 2" (DN50) | 68 | 62 |
kleur | zilver |
---|---|
materialen | roestvaststaal (RVS 316 L (1.4404)) |
afwerking | geen |
producent | Aalberts integrated piping systems B.V. (VSH) |
vorm | knie (90º) |
verbinding | press (M), R - buitendraad gas conisch (BSPT) |
afdichting | EPDM |
productgroep | fittingen |
---|---|
ETIM klasse | EC003024 Fitting met 2 aansluitingen |
intrastatnummer | 73072980 |
merk | VSH |
serie | XPress RVS |
type | R2728 |
UNSPS | 40172807 |
EPD-VSH-XPress-Stainless Environmental Product Declaration |
download | |
R2728 afbeelding |
png | download |
VSH XPress Stainless ATG certificaten |
download | |
VSH XPress Stainless Kiwa certificaten |
download | |
VSH XPress Stainless QB certificaten |
download | |
VSH XPress Stainless SVGW Water (DE) certificaten |
download | |
VSH XPress Stainless TA-Luft certificaten |
download | |
VSH XPress stainless ACS certificaten |
download | |
VSH XPress stainless ETA certificaten |
download | |
VSH XPress stainless LPCB certificaten |
download | |
VSH XPress stainless Lloyds Register certificaten |
download | |
VSH XPress stainless OVGW water certificaten |
download | |
VSH XPress stainless RISE certificaten |
download | |
VSH XPress stainless SBSC certificaten |
download | |
VSH XPress stainless WRAS certificaten |
download | |
VSH_XPress_Stainless-SPF certificaten |
download | |
VSH_XPress_Stainless_DVGW_Water certificaten |
download | |
VSH_XPress_Stainless_FM certificaten |
download | |
VSH_XPress_Stainless_RINA certificaten |
download | |
VSH_XPress_Stainless_SINTEF certificaten |
download | |
Vds g4080037 xpress sprinkler stainless certificaten |
download | |
Diagram diagram |
png | download |
VSH XPress Carbon&Stainless Bureau Veritas certificaten |
download | |
VSH XPress installation instructions installatie- & onderhoudsdocument |
download |
label | waarde |
---|---|
ETIM klasse | EC003024 Fitting met 2 aansluitingen |
Materiaal aansluiting 1 | Roestvaststaal (RVS) |
Kwaliteitsklasse aansluiting 1 | RVS 316 L (1.4404) |
Oppervlaktebescherming aansluiting 1 | Geen (onbehandeld) |
Oppervlaktebehandeling aansluiting 1 | Geen (onbehandeld) |
Materiaal aansluiting 2 | Roestvaststaal (RVS) |
Kwaliteitsklasse aansluiting 2 | RVS 316 L (1.4404) |
Oppervlaktebescherming aansluiting 2 | Geen (onbehandeld) |
Oppervlaktebehandeling aansluiting 2 | Geen (onbehandeld) |
Vorm | Bocht |
Uitvoering | 1-delig |
Bochthoek | 90° |
Verlopend | Nee |
Excentrisch | Nee |
Systeemgebonden | Ja |
Wanddikte aansluiting 1 | 1,5mm |
Aansluiting 1 | Persmof |
Contourcode aansluiting 1 | M |
Aansluiting 2 | Buitendraad conisch BSPT-R (ISO 7-1 / EN 10226-1) |
Hoofdkleur fitting | Grijs |
Druktrap klasse flens | PN 16 |
Materiaal afdichting | Ethyleen-Propyleen-Dieen-Monomeer (EPDM) |
Met stootnok/-rand | Ja |
Hoge treksterkte | Ja |
Mediumtemperatuur (continu) | -35°C - 135°C |
Mediumtemperatuur (continu) (imperial) | -31°F - 275°F |
Max. werkdruk bij 20°C | 16bar |
Max. werkdruk bij 20°C (imperial) | 232,06psi |
Met thermische isolatie | Nee |
Met pakkingen | Nee |
Afgedopt | Nee |
Met aansluitingsindicator | Nee |
Met aftapper | Nee |
Met ontluchter | Nee |
ULC keur | Nee |
UL-keur | Nee |
DIN-CERTCO certificaat | Nee |
Met TUV goedkeuring | Nee |
DVGW-keur voor gas | Nee |
DVGW-keur voor water | Ja |
Gecertificeerd volgens NF 545 | Nee |
KIWA-keur | Ja |
Gastec QA | Nee |
KOMO-keur | Nee |
Type goedkeuring volgens BBR / EKS | Nee |
