7121
De toegestane drukken zijn identiek aan die voor de standaard type 7707 koppelingen.
VSH Shurjoint gegroefde leidingsystemen bestaan uit een ruim assortiment groefkoppelingen, -fittingen en appendages voor verwarming, perslucht en industrie. VSH Shurjoint is minder arbeidsintensief, veiliger, schoner en levert een consistente kwaliteit van de verbinding.
toepassingen
segmenten
certificaten
| artikelnummer | afmeting | gewicht | afmetingen | verpakking | gtin |
|---|---|---|---|---|---|
| 171212010001 | 60,3x33,7x60,3 - oranje | 1,2 kg | 166x60x114 mm | doos (20 st) | 08711985443448 |
| 171212010003 | 60,3x33,7x60,3 - verzinkt | 1,2 kg | 166x60x114 mm | doos (20 st) | 08711985443455 |
| 171212015001 | 60,3x48,3x60,3 - oranje | 1,2 kg | 166x60x114 mm | doos (16 st) | 08711985443462 |
| 171212015003 | 60,3x48,3x60,3 - verzinkt | 1,2 kg | 166x60x114 mm | doos (16 st) | 08711985443479 |
| 171212910001 | 76,1x33,7x76,1 - oranje | 1,71 kg | 190x76x134 mm | doos (16 st) | 04710574421939 |
| 171212912001 | 76,1x42,4x76,1 - oranje | 1,97 kg | 190x76x134 mm | doos (10 st) | 04710574421953 |
| 171212915001 | 76,1x48,3x76,1 - oranje | 1,92 kg | 190x76x134 mm | doos (10 st) | 04710574421977 |
| 171212920001 | 76,1x60,3x76,1 - oranje | 2 kg | 190x76x134 mm | doos (10 st) | 08711985443486 |
| 171212920003 | 76,1x60,3x76,1 - verzinkt | 2 kg | 190x76x134 mm | doos (10 st) | 08711985443493 |
| 171213010001 | 88,9x33,7x88,9 - oranje | 2,47 kg | 216x89x153 mm | doos (8 st) | 08711985443509 |
| 171213010003 | 88,9x33,7x88,9 - verzinkt | 2,47 kg | 216x89x153 mm | doos (8 st) | 08711985443516 |
| 171213015001 | 88,9x48,3x88,9 - oranje | 2,37 kg | 216x89x153 mm | doos (8 st) | 08711985443523 |
| 171213015003 | 88,9x48,3x88,9 - verzinkt | 2,37 kg | 216x89x153 mm | doos (8 st) | 08711985443530 |
| 171213020001 | 88,9x60,3x88,9 - oranje | 2,8 kg | 216x89x153 mm | doos (6 st) | 08711985443547 |
| 171213020003 | 88,9x60,3x88,9 - verzinkt | 2,8 kg | 216x89x153 mm | doos (6 st) | 08711985443554 |
| 171213029001 | 88,9x76,1x88,9 - oranje | 2,52 kg | 216x89x153 mm | doos (6 st) | 08711985443561 |
| 171213029003 | 88,9x76,1x88,9 - verzinkt | 2,8 kg | 216x89x153 mm | doos (6 st) | 08711985443578 |
| 171214515001 | 114,3x48,3x114,3 - oranje | 4,21 kg | 254x114x185 mm | doos (3 st) | 08711985443585 |
| 171214520001 | 114,3x60,3x114,3 - oranje | 3,97 kg | 254x114x185 mm | doos (3 st) | 08711985443592 |
| 171214520003 | 114,3x60,3x114,3 - verzinkt | 3,97 kg | 254x114x185 mm | doos (3 st) | 08711985443608 |
| 171214529001 | 114,3x76,1x114,3 - oranje | 4,3 kg | 254x114x185 mm | doos (3 st) | 08711985443615 |
| 171214529003 | 114,3x76,1x114,3 - verzinkt | 4,3 kg | 254x114x185 mm | doos (3 st) | 08711985443622 |
| 171214530001 | 114,3x88,9x114,3 - oranje | 3,94 kg | 254x114x185 mm | doos (3 st) | 08711985443639 |
| 171214530003 | 114,3x88,9x114,3 - verzinkt | 3,94 kg | 254x114x185 mm | doos (3 st) | 08711985443646 |
| 171215220001 | 139,7x60,3x139,7 - oranje | 5,2 kg | 280x140x210 mm | doos (2 st) | 08711985476606 |
| 171215220003 | 139,7x60,3x139,7 - verzinkt | 5,2 kg | 280x140x210 mm | doos (2 st) | 08711985476699 |
| 171215229001 | 139,7x76,1x139,7 - oranje | 5,7 kg | 280x140x210 mm | doos (2 st) | 08711985443653 |
| 171215229003 | 139,7x76,1x139,7 - verzinkt | 5,7 kg | 280x140x210 mm | doos (2 st) | 08711985443660 |
| 171215230001 | 139,7x88,9x139,7 - oranje | 5,7 kg | 280x140x210 mm | doos (2 st) | 08711985443677 |
| 171215230003 | 139,7x88,9x139,7 - verzinkt | 5,7 kg | 280x140x210 mm | doos (2 st) | 08711985443684 |
| 171215245001 | 139,7x114,3x139,7 - oranje | 6,2 kg | 280x140x210 mm | doos (2 st) | 08711985443691 |
| 171215245003 | 139,7x114,3x139,7 - verzinkt | 6,2 kg | 280x140x210 mm | doos (2 st) | 08711985443707 |
| 171216220001 | 165,1x60,3x165,1 - oranje | 8 kg | 330x165x248 mm | doos (1 st) | 08711985443714 |
| 171216220003 | 165,1x60,3x165,1 - verzinkt | 8 kg | 330x165x248 mm | doos (1 st) | 08711985443721 |
| 171216229001 | 165,1x76,1x165,1 - oranje | 8,5 kg | 330x165x248 mm | doos (1 st) | 08711985476613 |
| 171216229003 | 165,1x76,1x165,1 - verzinkt | 8,5 kg | 330x165x248 mm | doos (1 st) | 08711985476705 |
| 171216230001 | 165,1x88,9x165,1 - oranje | 9,2 kg | 330x165x248 mm | doos (1 st) | 08711985443738 |
| 171216230003 | 165,1x88,9x165,1 - verzinkt | 9,2 kg | 330x165x248 mm | doos (1 st) | 08711985476712 |
| 171216245001 | 165,1x114,3x165,1 - oranje | 8,8 kg | 330x165x248 mm | doos (1 st) | 08711985443745 |
| 171216245003 | 165,1x114,3x165,1 - verzinkt | 8,8 kg | 330x165x248 mm | doos (1 st) | 08711985443752 |
| 171216252001 | 165,1x139,7x165,1 - oranje | 9,4 kg | 330x165x248 mm | doos (1 st) | 08711985476620 |
| 171216252003 | 165,1x139,7x165,1 - verzinkt | 9,4 kg | 330x165x248 mm | doos (1 st) | 08711985476729 |
| 171216520001 | 168,3x60,3x168,3 - oranje | 8 kg | 330x168x250 mm | doos (1 st) | 08711985443769 |
| 171216520003 | 168,3x60,3x168,3 - verzinkt | 8 kg | 330x168x250 mm | doos (1 st) | 08711985443776 |
| 171216529001 | 168,3x76,1x168,3 - oranje | 7,76 kg | 330x168x250 mm | doos (1 st) | 08711985476637 |
| 171216530001 | 168,3x88,9x168,3 - oranje | 9,2 kg | 330x168x250 mm | doos (1 st) | 08711985443783 |
| 171216530003 | 168,3x88,9x168,3 - verzinkt | 9,2 kg | 330x168x250 mm | doos (1 st) | 08711985443790 |
| 171216545001 | 168,3x114,3x168,3 - oranje | 8,8 kg | 330x168x250 mm | doos (1 st) | 08711985443806 |
| 171216545003 | 168,3x114,3x168,3 - verzinkt | 8,8 kg | 330x168x250 mm | doos (1 st) | 08711985443813 |
| 171216552001 | 168,3x139,7x168,3 - oranje | 8,34 kg | 330x168x250 mm | doos (1 st) | 08711985476644 |
| 171216552003 | 168,3x139,7x168,3 - verzinkt | 8,34 kg | 330x168x250 mm | doos (1 st) | 08711985476736 |
| 171218520001 | 219,1x60,3x219,1 - oranje | 14,76 kg | 394x219x307 mm | doos (1 st) | 08711985443820 |
| 171218520003 | 219,1x60,3x219,1 - verzinkt | 14,76 kg | 394x219x307 mm | doos (1 st) | 08711985443837 |
| 171218529001 | 219,1x76,1x219,1 - oranje | 15 kg | 394x219x307 mm | zak (1 st) | 08711985476651 |
| 171218530001 | 219,1x88,9x219,1 - oranje | 15,49 kg | 394x219x307 mm | doos (1 st) | 08711985476668 |
| 171218545001 | 219,1x114,3x219,1 - oranje | 17,76 kg | 394x219x307 mm | doos (1 st) | 08711985443844 |
| 171218545003 | 219,1x114,3x219,1 - verzinkt | 17,76 kg | 394x219x307 mm | doos (1 st) | 08711985443851 |
| 171218552001 | 219,1x139,7x219,1 - oranje | 17,8 kg | 394x219x307 mm | zak (1 st) | 08711985480825 |
| 171218552003 | 219,1x139,7x219,1 - verzinkt | 17,8 kg | 394x219x307 mm | zak (1 st) | 08711985480801 |
| 171218562001 | 219,1x165,1x219,1 - oranje | 18,68 kg | 394x219x307 mm | doos (1 st) | 08711985443868 |
| 171218562003 | 219,1x165,1x219,1 - verzinkt | 18,68 kg | 394x219x307 mm | doos (1 st) | 08711985443875 |
| 171218565001 | 219,1x168,3x219,1 - oranje | 18,68 kg | 394x219x307 mm | doos (1 st) | 08711985443882 |
| 171218565003 | 219,1x168,3x219,1 - verzinkt | 18,68 kg | 394x219x307 mm | doos (1 st) | 08711985443899 |
| 17121A120001 | 273x60,3x273 - oranje | 27,4 kg | 458x273x366 mm | doos (1 st) | 08711985445503 |
| 17121A130001 | 273x88,9x273 - oranje | 26,74 kg | 458x273x366 mm | doos (1 st) | 08711985445510 |
| 17121A130003 | 273x88,9x273 - verzinkt | 26,74 kg | 458x273x366 mm | doos (1 st) | 08711985445527 |
| 17121A145001 | 273x114,3x273 - oranje | 28,5 kg | 458x273x366 mm | doos (1 st) | 08711985445534 |
| 17121A145003 | 273x114,3x273 - verzinkt | 28,5 kg | 458x273x366 mm | doos (1 st) | 08711985445541 |
| 17121A162001 | 273x165,1x273 - oranje | 30 kg | 458x273x366 mm | zak (1 st) | 08711985476675 |
| 17121A165001 | 273x168,3x273 - oranje | 30 kg | 458x273x366 mm | doos (1 st) | 08711985445558 |
| 17121A165003 | 273x168,3x273 - verzinkt | 30 kg | 458x273x366 mm | doos (1 st) | 08711985445565 |
| 17121A185001 | 273x219,1x273 - oranje | 31,5 kg | 458x273x366 mm | doos (1 st) | 08711985445572 |
| 17121A185003 | 273x219,1x273 - verzinkt | 31,5 kg | 458x273x366 mm | doos (1 st) | 08711985445589 |
| 17121A330001 | 323,9x88,9x323,9 - oranje | 37,12 kg | 508x324x416 mm | doos (1 st) | 08711985445596 |
| 17121A345001 | 323,9x114,3x323,9 - oranje | 41 kg | 508x324x416 mm | doos (1 st) | 08711985445602 |
| 17121A362001 | 324x165,1x324 - oranje | 37,6 kg | 508x324x416 mm | zak (1 st) | 08711985476682 |
| 17121A365001 | 323,9x168,3x323,9 - oranje | 38 kg | 508x324x416 mm | doos (1 st) | 08711985445619 |
| 17121A385001 | 323,9x219,1x323,9 - oranje | 38 kg | 508x324x416 mm | doos (1 st) | 08711985445626 |
| 17121A385003 | 323,9x219,1x323,9 - verzinkt | 38 kg | 508x324x416 mm | doos (1 st) | 08711985445633 |
| 17121A3A1001 | 323,9x273x323,9 - oranje | 40 kg | 508x324x416 mm | doos (1 st) | 08711985445640 |
| 17121A3A1003 | 323,9x273x323,9 - verzinkt | 40 kg | 508x324x416 mm | doos (1 st) | 08711985445657 |

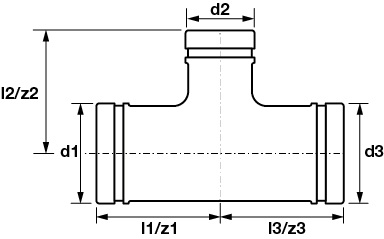

| artikelnummer | afmeting | d1 | DN1 | l1 | z1 | es1 | d2 | DN2 | l2 | z2 | es2 | d3 | DN3 | l3 | z3 | es3 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 171212010001 | 60,3x33,7x60,3 - oranje | 60,3 | DN50 | 83 | 83 | 25 | 33,7 | DN25 | 83 | 83 | 23 | 60,3 | DN50 | 83 | 83 | 25 |
| 171212010003 | 60,3x33,7x60,3 - verzinkt | 60,3 | DN50 | 83 | 83 | 25 | 33,7 | DN25 | 83 | 83 | 23 | 60,3 | DN50 | 83 | 83 | 25 |
| 171212015001 | 60,3x48,3x60,3 - oranje | 60,3 | DN50 | 83 | 83 | 25 | 48,3 | DN40 | 83 | 83 | 23 | 60,3 | DN50 | 83 | 83 | 25 |
| 171212015003 | 60,3x48,3x60,3 - verzinkt | 60,3 | DN50 | 83 | 83 | 25 | 48,3 | DN40 | 83 | 83 | 23 | 60,3 | DN50 | 83 | 83 | 25 |
| 171212910001 | 76,1x33,7x76,1 - oranje | 76,1 | DN65 | 95 | 95 | 25 | 33,7 | DN25 | 95 | 95 | 25 | 76,1 | DN65 | 95 | 95 | 25 |
| 171212912001 | 76,1x42,4x76,1 - oranje | 76,1 | DN65 | 95 | 95 | 25 | 42,2 | DN32 | 95 | 95 | 25 | 76,1 | DN65 | 95 | 95 | 25 |
| 171212915001 | 76,1x48,3x76,1 - oranje | 76,1 | DN65 | 95 | 95 | 25 | 48,3 | DN40 | 95 | 95 | 25 | 76,1 | DN65 | 95 | 95 | 25 |
| 171212920001 | 76,1x60,3x76,1 - oranje | 76,1 | DN65 | 95 | 95 | 25 | 60,3 | DN50 | 95 | 95 | 25 | 76,1 | DN65 | 95 | 95 | 25 |
| 171212920003 | 76,1x60,3x76,1 - verzinkt | 76,1 | DN65 | 95 | 95 | 25 | 60,3 | DN50 | 95 | 95 | 25 | 76,1 | DN65 | 95 | 95 | 25 |
| 171213010001 | 88,9x33,7x88,9 - oranje | 88,9 | DN80 | 108 | 108 | 25 | 33,7 | DN25 | 108 | 108 | 23 | 88,9 | DN80 | 108 | 108 | 25 |
| 171213010003 | 88,9x33,7x88,9 - verzinkt | 88,9 | DN80 | 108 | 108 | 25 | 33,7 | DN25 | 108 | 108 | 23 | 88,9 | DN80 | 108 | 108 | 25 |
| 171213015001 | 88,9x48,3x88,9 - oranje | 88,9 | DN80 | 108 | 108 | 25 | 48,3 | DN40 | 108 | 108 | 23 | 88,9 | DN80 | 108 | 108 | 25 |
| 171213015003 | 88,9x48,3x88,9 - verzinkt | 88,9 | DN80 | 108 | 108 | 25 | 48,3 | DN40 | 108 | 108 | 23 | 88,9 | DN80 | 108 | 108 | 25 |
| 171213020001 | 88,9x60,3x88,9 - oranje | 88,9 | DN80 | 108 | 108 | 25 | 60,3 | DN50 | 108 | 108 | 25 | 88,9 | DN80 | 108 | 108 | 25 |
| 171213020003 | 88,9x60,3x88,9 - verzinkt | 88,9 | DN80 | 108 | 108 | 25 | 60,3 | DN50 | 108 | 108 | 25 | 88,9 | DN80 | 108 | 108 | 25 |
| 171213029001 | 88,9x76,1x88,9 - oranje | 88,9 | DN80 | 108 | 108 | 25 | 76,1 | DN65 | 108 | 108 | 25 | 88,9 | DN80 | 108 | 108 | 25 |
| 171213029003 | 88,9x76,1x88,9 - verzinkt | 88,9 | DN80 | 108 | 108 | 25 | 76,1 | DN65 | 108 | 108 | 25 | 88,9 | DN80 | 108 | 108 | 25 |
| 171214515001 | 114,3x48,3x114,3 - oranje | 114,3 | DN100 | 127 | 127 | 25 | 48,3 | DN40 | 127 | 127 | 23 | 114,3 | DN100 | 127 | 127 | 25 |
| 171214520001 | 114,3x60,3x114,3 - oranje | 114,3 | DN100 | 127 | 127 | 25 | 60,3 | DN50 | 127 | 127 | 25 | 114,3 | DN100 | 127 | 127 | 25 |
| 171214520003 | 114,3x60,3x114,3 - verzinkt | 114,3 | DN100 | 127 | 127 | 25 | 60,3 | DN50 | 127 | 127 | 25 | 114,3 | DN100 | 127 | 127 | 25 |
| 171214529001 | 114,3x76,1x114,3 - oranje | 114,3 | DN100 | 127 | 127 | 25 | 76,1 | DN65 | 127 | 127 | 25 | 114,3 | DN100 | 127 | 127 | 25 |
| 171214529003 | 114,3x76,1x114,3 - verzinkt | 114,3 | DN100 | 127 | 127 | 25 | 76,1 | DN65 | 127 | 127 | 25 | 114,3 | DN100 | 127 | 127 | 25 |
| 171214530001 | 114,3x88,9x114,3 - oranje | 114,3 | DN100 | 127 | 127 | 25 | 88,9 | DN80 | 127 | 127 | 25 | 114,3 | DN100 | 127 | 127 | 25 |
| 171214530003 | 114,3x88,9x114,3 - verzinkt | 114,3 | DN100 | 127 | 127 | 25 | 88,9 | DN80 | 127 | 127 | 25 | 114,3 | DN100 | 127 | 127 | 25 |
| 171215220001 | 139,7x60,3x139,7 - oranje | 139,7 | DN125 | 140 | 140 | 25 | 60,3 | DN50 | 140 | 140 | 25 | 139,7 | DN125 | 140 | 140 | 25 |
| 171215220003 | 139,7x60,3x139,7 - verzinkt | 139,7 | DN125 | 140 | 140 | 25 | 60,3 | DN50 | 140 | 140 | 25 | 139,7 | DN125 | 140 | 140 | 25 |
| 171215229001 | 139,7x76,1x139,7 - oranje | 139,7 | DN125 | 140 | 140 | 25 | 76,1 | DN65 | 140 | 140 | 25 | 139,7 | DN125 | 140 | 140 | 25 |
| 171215229003 | 139,7x76,1x139,7 - verzinkt | 139,7 | DN125 | 140 | 140 | 25 | 76,1 | DN65 | 140 | 140 | 25 | 139,7 | DN125 | 140 | 140 | 25 |
| 171215230001 | 139,7x88,9x139,7 - oranje | 139,7 | DN125 | 140 | 140 | 25 | 88,9 | DN80 | 140 | 140 | 25 | 139,7 | DN125 | 140 | 140 | 25 |
| 171215230003 | 139,7x88,9x139,7 - verzinkt | 139,7 | DN125 | 140 | 140 | 25 | 88,9 | DN80 | 140 | 140 | 25 | 139,7 | DN125 | 140 | 140 | 25 |
| 171215245001 | 139,7x114,3x139,7 - oranje | 139,7 | DN125 | 140 | 140 | 25 | 114,3 | DN100 | 140 | 140 | 25 | 139,7 | DN125 | 140 | 140 | 25 |
| 171215245003 | 139,7x114,3x139,7 - verzinkt | 139,7 | DN125 | 140 | 140 | 25 | 114,3 | DN100 | 140 | 140 | 25 | 139,7 | DN125 | 140 | 140 | 25 |
| 171216220001 | 165,1x60,3x165,1 - oranje | 165,1 | DN150 | 165 | 165 | 25 | 60,3 | DN50 | 165 | 165 | 25 | 165,1 | DN150 | 165 | 165 | 25 |
| 171216220003 | 165,1x60,3x165,1 - verzinkt | 165,1 | DN150 | 165 | 165 | 25 | 60,3 | DN50 | 165 | 165 | 25 | 165,1 | DN150 | 165 | 165 | 25 |
| 171216229001 | 165,1x76,1x165,1 - oranje | 165,1 | DN150 | 165 | 165 | 25 | 76,1 | DN65 | 165 | 165 | 25 | 165,1 | DN150 | 165 | 165 | 25 |
| 171216229003 | 165,1x76,1x165,1 - verzinkt | 165,1 | DN150 | 165 | 165 | 25 | 76,1 | DN65 | 165 | 165 | 25 | 165,1 | DN150 | 165 | 165 | 25 |
| 171216230001 | 165,1x88,9x165,1 - oranje | 165,1 | DN150 | 165 | 165 | 25 | 88,9 | DN80 | 165 | 165 | 25 | 165,1 | DN150 | 165 | 165 | 25 |
| 171216230003 | 165,1x88,9x165,1 - verzinkt | 165,1 | DN150 | 165 | 165 | 25 | 88,9 | DN80 | 165 | 165 | 25 | 165,1 | DN150 | 165 | 165 | 25 |
| 171216245001 | 165,1x114,3x165,1 - oranje | 165,1 | DN150 | 165 | 165 | 25 | 114,3 | DN100 | 165 | 165 | 25 | 165,1 | DN150 | 165 | 165 | 25 |
| 171216245003 | 165,1x114,3x165,1 - verzinkt | 165,1 | DN150 | 165 | 165 | 25 | 114,3 | DN100 | 165 | 165 | 25 | 165,1 | DN150 | 165 | 165 | 25 |
| 171216252001 | 165,1x139,7x165,1 - oranje | 165,1 | DN150 | 165 | 165 | 25 | 139,7 | DN125 | 165 | 165 | 25 | 165,1 | DN150 | 165 | 165 | 25 |
| 171216252003 | 165,1x139,7x165,1 - verzinkt | 165,1 | DN150 | 165 | 165 | 25 | 139,7 | DN125 | 165 | 165 | 25 | 165,1 | DN150 | 165 | 165 | 25 |
| 171216520001 | 168,3x60,3x168,3 - oranje | 168,3 | DN150 | 165 | 165 | 25 | 60,3 | DN50 | 165 | 165 | 25 | 168,3 | DN150 | 165 | 165 | 25 |
| 171216520003 | 168,3x60,3x168,3 - verzinkt | 168,3 | DN150 | 165 | 165 | 25 | 60,3 | DN50 | 165 | 165 | 25 | 168,3 | DN150 | 165 | 165 | 25 |
| 171216529001 | 168,3x76,1x168,3 - oranje | 168,3 | DN150 | 165 | 165 | 25 | 76,1 | DN65 | 165 | 165 | 25 | 168,3 | DN150 | 165 | 165 | 25 |
| 171216530001 | 168,3x88,9x168,3 - oranje | 168,3 | DN150 | 165 | 165 | 25 | 88,9 | DN80 | 165 | 165 | 25 | 168,3 | DN150 | 165 | 165 | 25 |
| 171216530003 | 168,3x88,9x168,3 - verzinkt | 168,3 | DN150 | 165 | 165 | 25 | 88,9 | DN80 | 165 | 165 | 25 | 168,3 | DN150 | 165 | 165 | 25 |
| 171216545001 | 168,3x114,3x168,3 - oranje | 168,3 | DN150 | 165 | 165 | 25 | 114,3 | DN100 | 165 | 165 | 25 | 168,3 | DN150 | 165 | 165 | 25 |
| 171216545003 | 168,3x114,3x168,3 - verzinkt | 168,3 | DN150 | 165 | 165 | 25 | 114,3 | DN100 | 165 | 165 | 25 | 168,3 | DN150 | 165 | 165 | 25 |
| 171216552001 | 168,3x139,7x168,3 - oranje | 168,3 | DN150 | 165 | 165 | 25 | 139,7 | DN125 | 165 | 165 | 25 | 168,3 | DN150 | 165 | 165 | 25 |
| 171216552003 | 168,3x139,7x168,3 - verzinkt | 168,3 | DN150 | 165 | 165 | 25 | 139,7 | DN125 | 165 | 165 | 25 | 168,3 | DN150 | 165 | 165 | 25 |
| 171218520001 | 219,1x60,3x219,1 - oranje | 219,1 | DN200 | 197 | 197 | 31 | 60,3 | DN50 | 197 | 197 | 25 | 219,1 | DN200 | 197 | 197 | 31 |
| 171218520003 | 219,1x60,3x219,1 - verzinkt | 219,1 | DN200 | 197 | 197 | 31 | 60,3 | DN50 | 197 | 197 | 25 | 219,1 | DN200 | 197 | 197 | 31 |
| 171218529001 | 219,1x76,1x219,1 - oranje | 219,1 | DN200 | 197 | 197 | 31 | 76,1 | DN65 | 197 | 197 | 31 | 219,1 | DN200 | 197 | 197 | 31 |
| 171218530001 | 219,1x88,9x219,1 - oranje | 219,1 | DN200 | 197 | 197 | 31 | 88,9 | DN80 | 197 | 197 | 31 | 219,1 | DN200 | 197 | 197 | 31 |
| 171218545001 | 219,1x114,3x219,1 - oranje | 219,1 | DN200 | 197 | 197 | 31 | 114,3 | DN100 | 197 | 197 | 25 | 219,1 | DN200 | 197 | 197 | 31 |
| 171218545003 | 219,1x114,3x219,1 - verzinkt | 219,1 | DN200 | 197 | 197 | 31 | 114,3 | DN100 | 197 | 197 | 25 | 219,1 | DN200 | 197 | 197 | 31 |
| 171218552001 | 219,1x139,7x219,1 - oranje | 219,1 | DN200 | 197 | 197 | 31 | 139,7 | DN125 | 197 | 197 | 25 | 219,1 | DN200 | 197 | 197 | 31 |
| 171218552003 | 219,1x139,7x219,1 - verzinkt | 219,1 | DN200 | 197 | 197 | 31 | 139,7 | DN125 | 197 | 197 | 25 | 219,1 | DN200 | 197 | 197 | 31 |
| 171218562001 | 219,1x165,1x219,1 - oranje | 219,1 | DN200 | 197 | 197 | 31 | 165,1 | DN150 | 197 | 197 | 25 | 219,1 | DN200 | 197 | 197 | 31 |
| 171218562003 | 219,1x165,1x219,1 - verzinkt | 219,1 | DN200 | 197 | 197 | 31 | 165,1 | DN150 | 197 | 197 | 25 | 219,1 | DN200 | 197 | 197 | 31 |
| 171218565001 | 219,1x168,3x219,1 - oranje | 219,1 | DN200 | 197 | 197 | 31 | 168,3 | DN150 | 197 | 197 | 25 | 219,1 | DN200 | 197 | 197 | 31 |
| 171218565003 | 219,1x168,3x219,1 - verzinkt | 219,1 | DN200 | 197 | 197 | 31 | 168,3 | DN150 | 197 | 197 | 25 | 219,1 | DN200 | 197 | 197 | 31 |
| 17121A120001 | 273x60,3x273 - oranje | 273,0 | DN250 | 229 | 229 | 31 | 60,3 | DN50 | 229 | 229 | 25 | 273,0 | DN250 | 229 | 229 | 31 |
| 17121A130001 | 273x88,9x273 - oranje | 273,0 | DN250 | 229 | 229 | 31 | 88,9 | DN80 | 229 | 229 | 25 | 273,0 | DN250 | 229 | 229 | 31 |
| 17121A130003 | 273x88,9x273 - verzinkt | 273,0 | DN250 | 229 | 229 | 31 | 88,9 | DN80 | 229 | 229 | 25 | 273,0 | DN250 | 229 | 229 | 31 |
| 17121A145001 | 273x114,3x273 - oranje | 273,0 | DN250 | 229 | 229 | 31 | 114,3 | DN100 | 229 | 229 | 25 | 273,0 | DN250 | 229 | 229 | 31 |
| 17121A145003 | 273x114,3x273 - verzinkt | 273,0 | DN250 | 229 | 229 | 31 | 114,3 | DN100 | 229 | 229 | 25 | 273,0 | DN250 | 229 | 229 | 31 |
| 17121A162001 | 273x165,1x273 - oranje | 273,0 | DN250 | 229 | 229 | 31 | 165,1 | DN150 | 229 | 229 | 31 | 273,0 | DN250 | 229 | 229 | 31 |
| 17121A165001 | 273x168,3x273 - oranje | 273,0 | DN250 | 229 | 229 | 31 | 168,3 | DN150 | 229 | 229 | 25 | 273,0 | DN250 | 229 | 229 | 31 |
| 17121A165003 | 273x168,3x273 - verzinkt | 273,0 | DN250 | 229 | 229 | 31 | 168,3 | DN150 | 229 | 229 | 25 | 273,0 | DN250 | 229 | 229 | 31 |
| 17121A185001 | 273x219,1x273 - oranje | 273,0 | DN250 | 229 | 229 | 31 | 219,1 | DN200 | 229 | 229 | 31 | 273,0 | DN250 | 229 | 229 | 31 |
| 17121A185003 | 273x219,1x273 - verzinkt | 273,0 | DN250 | 229 | 229 | 31 | 219,1 | DN200 | 229 | 229 | 31 | 273,0 | DN250 | 229 | 229 | 31 |
| 17121A330001 | 323,9x88,9x323,9 - oranje | 323,9 | DN300 | 254 | 254 | 31 | 88,9 | DN80 | 254 | 254 | 25 | 323,9 | DN300 | 254 | 254 | 31 |
| 17121A345001 | 323,9x114,3x323,9 - oranje | 323,9 | DN300 | 254 | 254 | 31 | 114,3 | DN100 | 254 | 254 | 25 | 323,9 | DN300 | 254 | 254 | 31 |
| 17121A362001 | 324x165,1x324 - oranje | 323,9 | DN300 | 254 | 254 | 31 | 165,1 | DN150 | 254 | 254 | 31 | 323,9 | DN300 | 254 | 254 | 31 |
| 17121A365001 | 323,9x168,3x323,9 - oranje | 323,9 | DN300 | 254 | 254 | 31 | 168,3 | DN150 | 254 | 254 | 25 | 323,9 | DN300 | 254 | 254 | 31 |
| 17121A385001 | 323,9x219,1x323,9 - oranje | 323,9 | DN300 | 254 | 254 | 31 | 219,1 | DN200 | 254 | 254 | 31 | 323,9 | DN300 | 254 | 254 | 31 |
| 17121A385003 | 323,9x219,1x323,9 - verzinkt | 323,9 | DN300 | 254 | 254 | 31 | 219,1 | DN200 | 254 | 254 | 31 | 323,9 | DN300 | 254 | 254 | 31 |
| 17121A3A1001 | 323,9x273x323,9 - oranje | 323,9 | DN300 | 254 | 254 | 31 | 273,0 | DN250 | 254 | 254 | 31 | 323,9 | DN300 | 254 | 254 | 31 |
| 17121A3A1003 | 323,9x273x323,9 - verzinkt | 323,9 | DN300 | 254 | 254 | 31 | 273,0 | DN250 | 254 | 254 | 31 | 323,9 | DN300 | 254 | 254 | 31 |
| kleur | zilver, oranje |
|---|---|
| materialen | gietijzer, staal (ASTM A536 65-45-12, ASTM A53 Grade B) |
| afwerking | verzinkt, gelakt |
| producent | Shurjoint |
| vorm | T-stuk, verloop (90º) |
| verbinding | groef |
| productgroep | fittingen (demontabel) |
|---|---|
| ETIM klasse | EC003025 Fitting met 3 aansluitingen |
| intrastatnummer | 73071910 |
| merk | VSH |
| serie | Shurjoint |
| type | 7121 |
 7121 afbeelding |
png | download |
 7121-GV afbeelding |
png | download |
FM certificaten |
download | |
LPCB certificaten |
download | |
UL certificaten |
download | |
ULc certificaten |
download | |
 Diagram diagram |
png | download |
Datasheet submittal sheet |
download | |
VSH Shurjoint instructions installatie- & onderhoudsdocument |
download | |
VSH Shurjoint Installation Handbook installatie- & onderhoudsdocument |
download |
| label | waarde |
|---|---|
| ETIM klasse | EC003025 Fitting met 3 aansluitingen |
| Uitvoering | T-stuk |
| Hoek | 90° |
| Verlopend | Ja |
| Meerdelig | Nee |
| Systeemgebonden | Nee |
| Aansluiting 1 | Groef |
| Aansluiting 2 | Groef |
| Aansluiting 3 | Groef |
| Hoge treksterkte | Ja |
| Met pakkingen | Nee |
| Met aftapper | Nee |
| Met ontluchter | Nee |
| Met stootnok/-rand | Nee |
| Afgedopt | Nee |
| Met aansluitingsindicator | Nee |
| VdS keur | Nee |
| DVGW-keur voor gas | Nee |
| DVGW-keur voor water | Nee |
| KIWA-keur | Nee |
| Gastec QA | Nee |
| KOMO-keur | Nee |
wilt u op de hoogte blijven?
schrijf u dan in voor onze nieuwsbrief.
NL:
BE:
LU:
